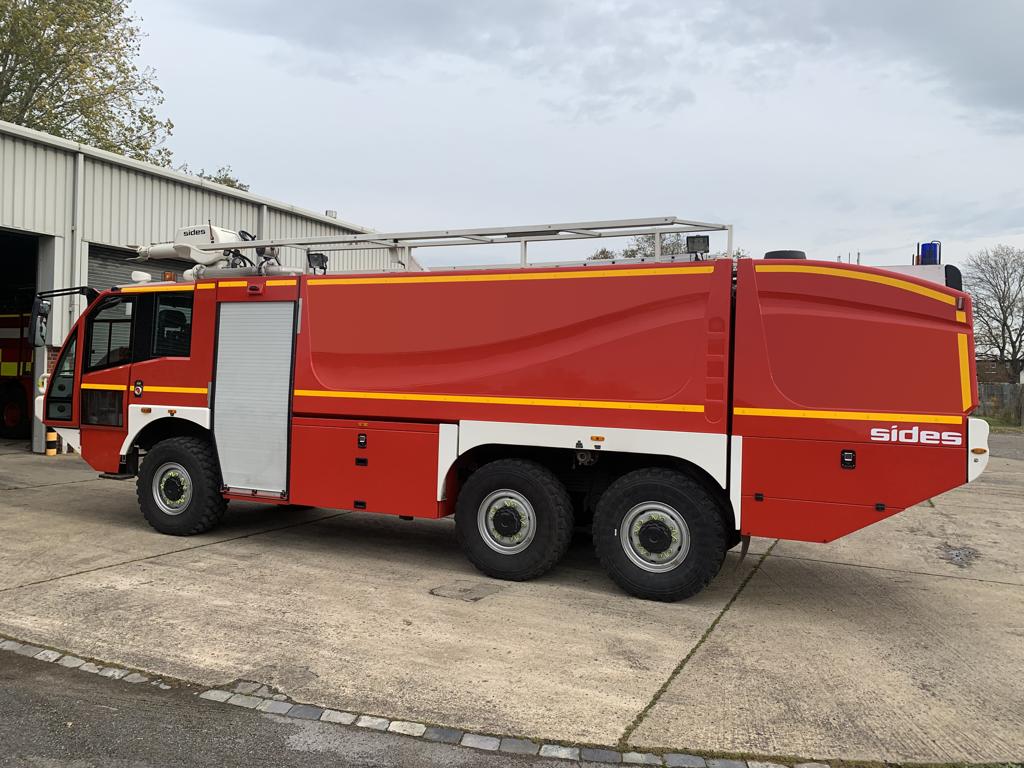

Sides VMA S3X (SENTINAL)
2014 Model
Leading Particulars
Auto Gearbox
Water tank capacity 10,000ltrs
Foam tank capacity 1,000ltrs
Pump Output 6,000 litres at 12 bar
Foam expansion ration 7 to 10 depending on foam concentrate
Roof Monitor
Operating pressure 13 Bar
Output 1/1 4,500 l/min
Output 1/2 2,250 l/min
Range 70m
BumperMonitor
Operating pressure 13 Bar
Output 1/1 1,140 l/min
Range 55m
Foam expansion ration 3 to 4 depending on foam concentrate
Foam Hose Reel Hand Line
Default operating pressure 8 Bar
Flow rate 360 l/min
Range 25m depending on flow rate and adjustment of jet
Length 30m
Diameter 35mm
Foam Side Line
Default operating pressure 8 Bar
Flow rate 360 l/min
Range 25m depending on flow rate and adjustment of jet
Length 30m
Diameter 35mm
Vehicle Self Protection
Total flow rate 300 l/min
Radius range 3.50m
In excellent condition
